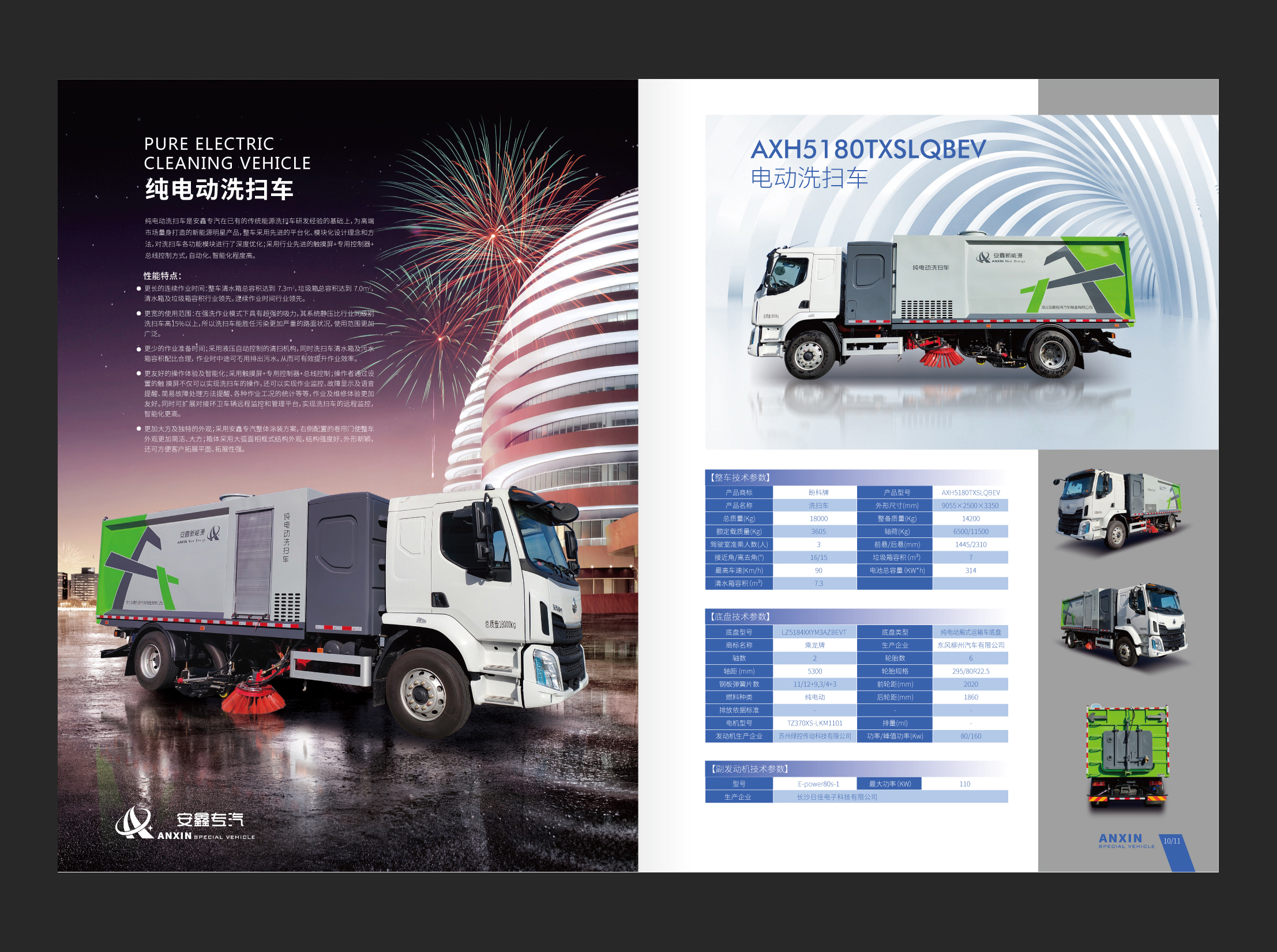

AXH5180TXSLQBEV
Battery-Powered Sweeper
Heavy-Duty Build
B2B Delivery
Quality Inspection
A flagship new energy model meticulously engineered for the premium market segment. The vehicle is built upon an advanced platform-based, modular design architecture, with deep optimization applied across all sweeping and washing functions. It utilizes the industry's latest integrated control system, combining an intuitive touchscreen interface, a dedicated vehicle controller, and CAN bus communication technology, delivering exceptional levels of automation and operational intelligence.
Technical Parameters
Overall Dimensions (L×W×H) .......... 9,055 × 2,500 × 3,350 mm Gross Vehicle Weight (GVW) .......... 18,000 kg Curb Weight ......................... 14,200 kg Rated Payload Capacity .............. 3,605 kg Axle Load (Front/Rear) .............. 6,500 kg / 11,500 kg Cabin Capacity ...................... 3 Persons Front / Rear Overhang ............... 1,445 mm / 2,310 mm Approach / Departure Angle .......... 16° / 15° Waste Hopper Volume ................. 7 m³ Maximum Speed ....................... 90 km/h Total Battery Capacity .............. 314 kWh Water Tank Volume ................... 7.3 m³
